| SPECIFICATIONS |
Digi TransPort WR31 |
| WIRELESS INTERFACES |
| WWAN |
|
| LTE – NORTH AMERICA (L5) |
Software defined multi-carrier |
|
LTE CAT 3: 700(B13,B17)/850(B5)/AWS(B4)/1900(B2,B25) |
|
3G HSPA+: 850/900/1700AWS/1900/2100 MHz |
|
3G EVDO: 800/1900 MHz |
|
2G EDGE/GPRS: 850/900/1800/1900 MHz |
|
2G 1XRTT: 800/1900 MHz |
|
Transfer rate (max): 100 Mbps down, 50Mbps up |
|
Approvals: Verizon Private Network, DMNR and PNTM, AT&T, Sprint, Telus, Bell |
| LTE 450 – EMEA/APAC (M2) |
LTE CAT 3: 450(B31)/800(B20)/1800(B3)/2600 (B7) |
|
HSPA+: 900/2100 MHz |
|
EDGE: 900/1800 MHz |
|
Transfer rate (max): 100Mbps down, 50Mbps up |
| LTE – EMEA/APAC (L1) |
LTE CAT 3: 800(B20)/850(B5)/900(B8)/1800(B3)/1900(B2)/2100(B1)/2600(B7) |
|
3G HSPA+: 850/900/1900/2100 MHz |
|
2G EDGE/GPRS: 850/900/1800/1900 MHz |
|
Transfer rate (max): 100 Mbps down, 50Mbps up |
|
Approvals: Vodafone |
| GLOBAL HSPA+ (U9) |
3G HSPA+: 850/900/1700AWS/1900/2100 MHz |
|
2G EDGE/GPRS: 850/900/1800/1900 MHz |
|
Transfer rate (max): 21 Mbps down, 5.76 Mbps up |
|
Approvals: PTCRB, Vodafone |
| CONNECTORS |
(2) 50 Ω SMA (Center pin: female) |
| SIM SLOTS |
(2) Mini-SIM (2FF) |
| SIM SECURITY |
Screw-down SIM cover |
| SOFTWARE & MANAGEMENT |
| REMOTE MANAGEMENT |
Digi Remote Manager® (cloud based); SNMP v1/v2c/v3 (user installed/managed) |
| LOCAL MANAGEMENT |
WebUI (HTTP/HTTPS); CLI (Telnet, SSH, SMS) |
| MANAGEMENT/ TROUBLESHOOTING TOOLS |
FTP, SFTP, SCP; Protocol analyzer with PCAP for Wireshark; Event logging with Syslog and SMTP; NTP/SNTP |
| WIRED INTERFACES |
| ETHERNET |
|
| PORTS |
(2) RJ-45; 10/100 Mbps (auto-sensing) |
| SERIAL |
|
| PORTS |
(1) DB-9; DCE |
| STANDARD |
RS-232/422/485 |
| SIGNAL SUPPORT |
TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI |
| FLOW CONTROL |
Software (XON/XOFF), Hardware supported |

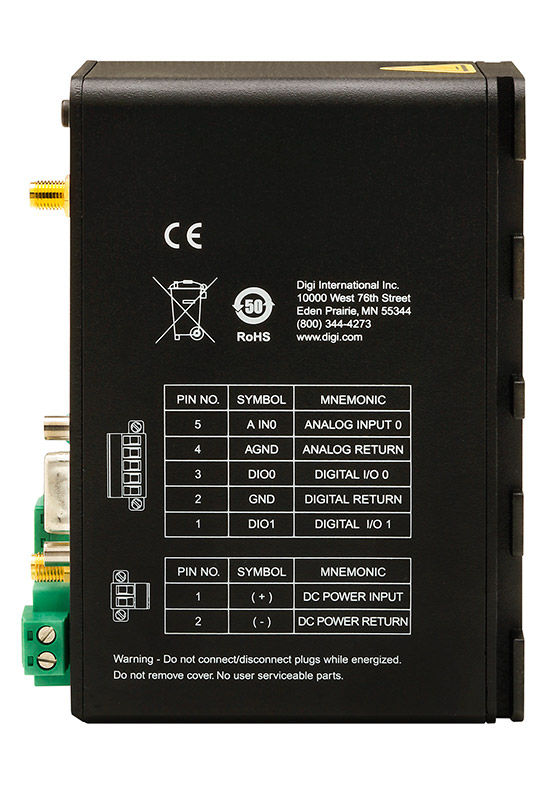

| I/O |
|
| CONNECTOR |
5-pin screw down terminal block |
| DIGITAL |
0-30 VDC, 200mA max.; (2) I/O, software -selectable |
| ANALOG |
(1) analog I/O; 4-20mA or 0-10V, Software selectable; 12 bit resolution |
| USB |
|
| PORTS |
(1) USB 2.0 Type A |
| PHYSICAL |
|
| DIMENSIONS (L X W X H) |
5 in x 3.5 in x 2 in (12.7 cm x 8.9 cm x 5.1 cm) |
| WEIGHT |
1.1 lb. (.5 kg) |

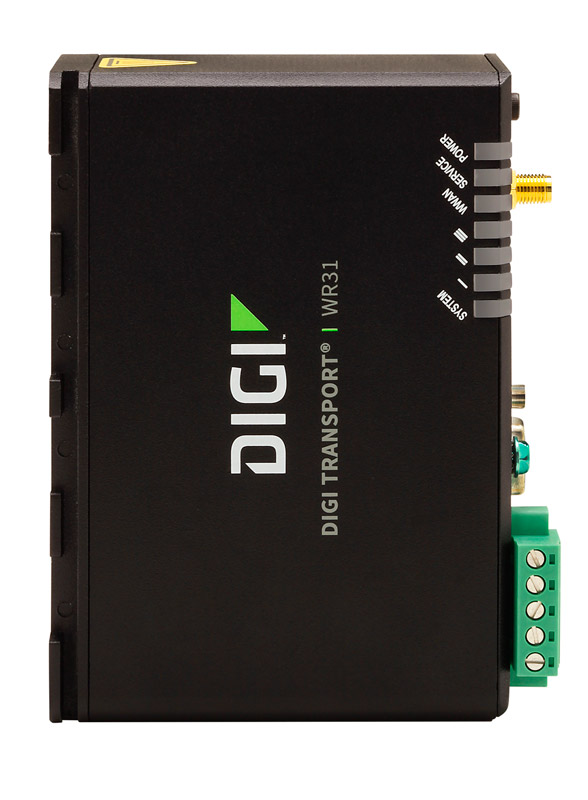

| STATUS LEDS |
Power, Service, WWAN, 3x Signal strength, User Programmable |
| ENCLOSURE/RATING |
Aluminum / IP30 |

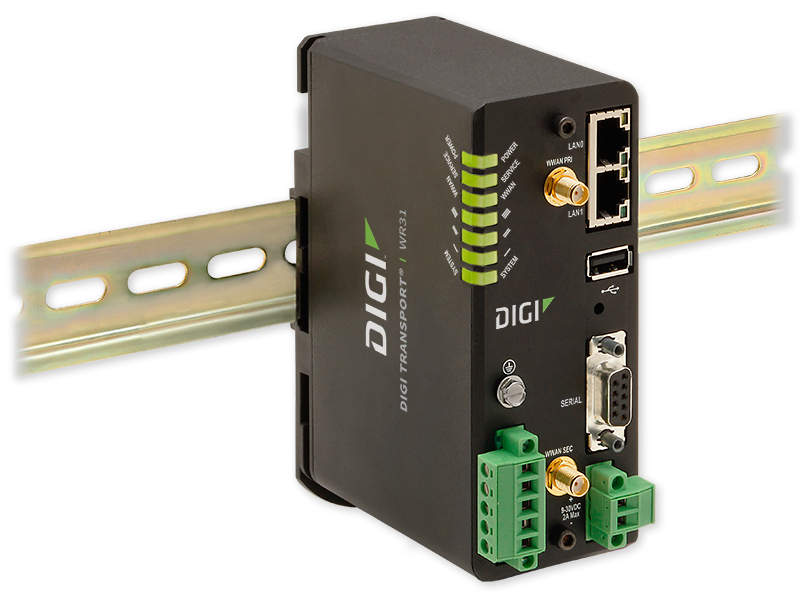

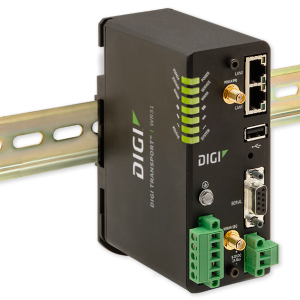

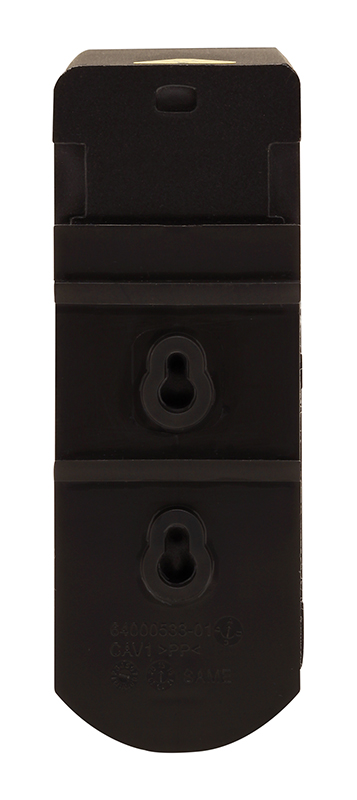

| MOUNTING |
DIN rail mount included |
| POWER REQUIREMENTS |
| POWER INPUT |
9 – 30 VDC, 18W min power source required |
| POWER CONNECTOR |
Screw down removable terminal block |
| POWER CONSUMPTION |
4W typical (Idle); 12W typical (Peak Tx/Rx) |
| ENVIRONMENTAL |
| HAZARDOUS (CLASS 1 DIV 2) |
Yes |
| OPERATING TEMPERATURE |
-34° C to +74° C (-29° F to +165° F); (Reduced cellular performance may occur above +60° C) |
| STORAGE TEMPERATURE |
-40° C to +85° C (-40° F to +185° F) |
| ETHERNET ISOLATION |
1.5 kV RMS |
| SERIAL PORT PROTECTION (ESD) |
15 kV |
| RELATIVE HUMIDITY |
5% to 95% (non-condensing) |
| APPROVALS |
|
| CELLULAR |
PTCRB |
| SAFETY |
Hazardous locations: ANSI/ISA-12.12.01-2015, CAN/CSA C22.2 NO.213-15 |
|
Ordinary locations: UL 60950-1, 2nd Edition, 2014-10-14; UL 62368: 2014, 2nd Edition |
|
ATEX standards: Protection method II 3 G Ex nA IIC T4 Gc |
|
EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1 |
| IECEX STANDARDS |
US/UL/ExTR17.0077/00 |
| EMISSIONS/IMMUNITY |
CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55022 Class B |
| WARRANTY |
|
| PRODUCT WARRANTY |
5 years |
| ENTERPRISE SOFTWARE |
DESCRIPTION |
| PROTOCOL SUPPORT |
HTTP, HTTPS, FTP, SFTP, SSL, SMTP, Device Cloud SNMP, SNMP (v1/v2c/v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager; SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS, Dynamic DNS client compatible with BIND9/No-IP/DynDNS |
| SECURITY/VPN |
IP filtering, Stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3, FIPS 197, Open VPN client and server; PPTP, L2TP; (5) VPN Tunnels (upgradable to a maximum of 50); Cryptology: SHA-1, MD5, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, SCEP for X.509; certificates; Content Filtering (via 3rd party); MAC Address Filtering; VLAN support |
| ROUTING/FAILOVER |
IP pass-through; NAT, NAPT with IP Port Forwarding; Ethernet Bridging; GRE; Multicast Routing;Routing Protocols: PPP, PPPoE, RIP (v1, v2) OSPF, SRI, BGP, iGMP routing (multicast); RSTP (Rapid Spanning Tree Protocol); IP Failover: VRRP, VRRP+TM; Automatic failover/failback to second GSM network/Standby APN |
| OTHER PROTOCOLS |
DDHCP; Dynamic DNS client compatible with BIND9/No-IP/DynDNS; QoS via TOS/DSCP/WRED; Modbus UDP/TCP to serial; X.25 including XOT, SNA/IP, TPAD and PAD; Protocol switch; Modbus bridging for connecting diverse field assets |
