SPECIFICATIONS |
Digi IX20 |
CELLULAR* |
|
CERTIFICATIONS |
Visit https://www.digi.com/resources/certifications for latest certifications |
LTE-A (07) WITH DIGI CORE PLUG-IN LTE MODEM 1003-CM07** |
LTE-Advanced Cat 7 (North America): B2, B4, B5, B7, B12, B13, B25, B26, B41, B42, B43, B48, B66, B71; |
|
3G: B2, B5; |
|
GNSS/GPS; |
|
Transfer rate (max): 300 Mbps down, 150 Mbps up; |
|
Industrial temperature |
LTE (G4) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMG4 |
LTE Cat 4 (Global): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41; |
|
3G: B1, B2, B4, B5, B6, B8, B19; |
|
2G: 850 / 900 / 1800 / 1900 MHz; |
|
Transfer rate (max): 150 Mbps down, 50 Mbps up; |
|
Industrial temperature |
LTE (N4/P4) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMF4 |
LTE Cat 4 (North America): B2, B4, B5, B12, B13, B14 (FirstNet®), B66, B71; |
|
3G: B2, B4, B5; |
|
Transfer rate (max): 150 Mbps down, 50 Mbps up; |
|
Industrial temperature |
LTE (45) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CM45 |
LTE Cat 4 (EMEA): B3, B7, B20, B31, B72; 450 MHz support |
|
Transfer rate (max): 150 Mbps down, 50 Mbps up; |
|
Industrial temperature |
LTE (M1) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMM1*** |
LTE Cat M1/NB1 (North America): B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20,B26, B28; |
|
2G: 850 / 900 / 1800 / 1900 MHz |
|
Transfer rate (max): M1: 300 kbps down, 375 kbps up; NB1: 21 kbps down, 62.5 kbps up; 2G: 296 kbps down, 236 kbps up; |
|
Industrial temperature |

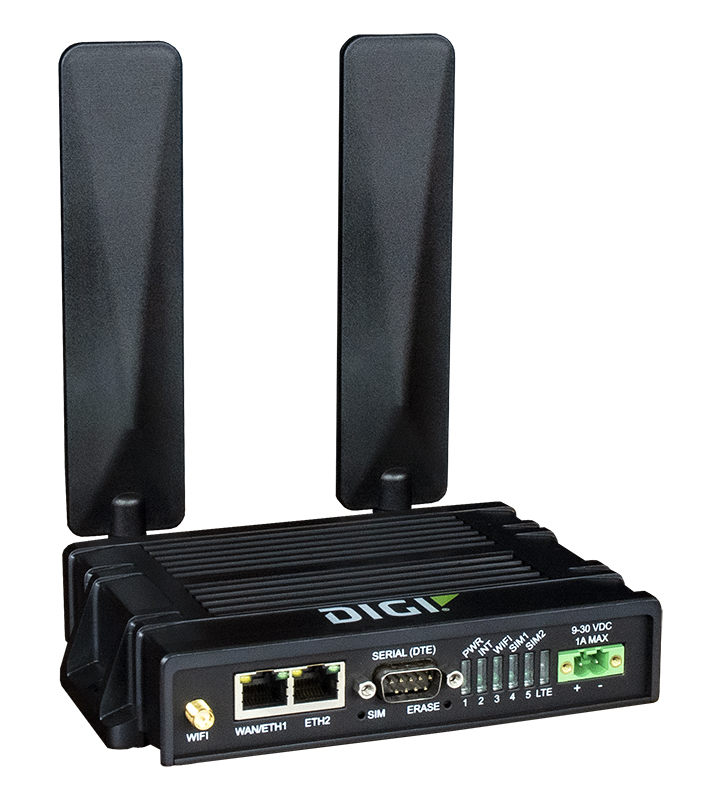

CONNECTORS |
(2) 50 Ω SMA (center pin: female) |
SIM SLOTS |
(2) Mini-SIM (2FF) |
SIM SECURITY |
Secured in cellular module |
WI-FI |
|
MODULE |
1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz) |
AUTHENTICATION |
TACACS+, Enterprise RADIUS |
MODES |
Client mode and access point mode simultaneously |
CLIENTS |
Maximum 10 clients (access point mode: regardless of combination of clients and access points) |
ACCESS POINTS |
Maximum 2 access points (access point mode: regardless of combination of clients and access points) |
SECURITY |
WPA/WPA-2 personal, WPA/WPA-2 enterprise |

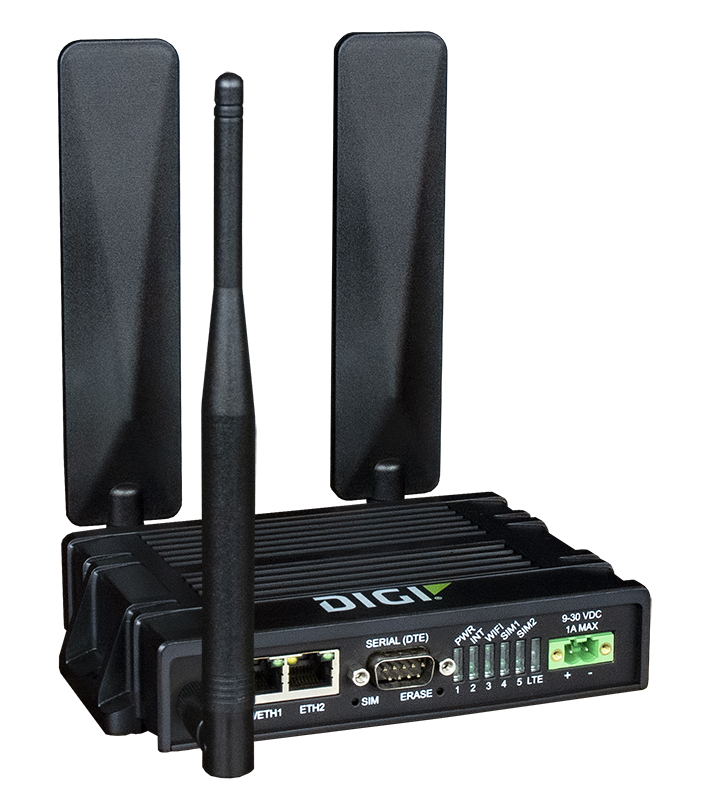

CONNECTORS |
(1) 50 Ω SMA (center pin: male) |
SOFTWARE AND MANAGEMENT |
REMOTE MANAGEMENT |
Digi Remote Manager®; SNMP v2/v3 (user installed/managed) |
LOCAL MANAGEMENT |
Web UI (HTTP/HTTPS); CLI (Telnet, SSH) |
MANAGEMENT / TROUBLESHOOTING TOOLS |
FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, IPerf, dynamic DNS, ping, traceroute |
MEMORY |
256 MB RAM, 256 MB flash |
ETHERNET |
|
PORTS |
(2) RJ-45; 10/100 Mbps (auto-sensing) |
SERIAL |
|
PORTS |
(1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS) |
PHYSICAL |
|
DIMENSIONS (L x W x H) |
107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in) |
WEIGHT |
0.65 kg (1.4 lb) |

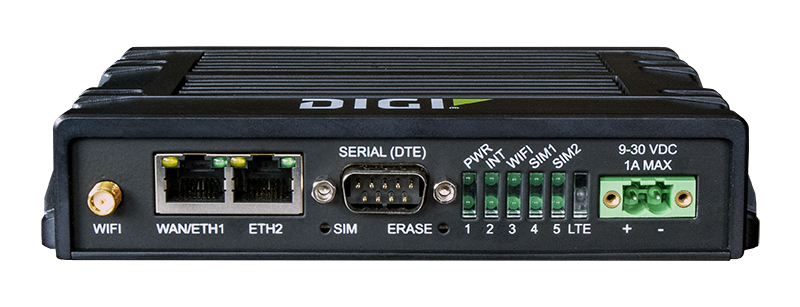

STATUS LEDs |
Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE |
ENCLOSURE |
Glass-filled polyphenylene sulphide (PPS) / IP30 |
POWER REQUIREMENTS |
POWER INPUT |
9 – 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included |
POWER CONSUMPTION |
2.5 W typical (idle); 6 W typical (peak Tx/Rx) |
ENVIRONMENTAL |
OPERATING TEMPERATURE |
Models with Wi-Fi: -20° C to 70° C (-4° F to 158° F) |
|
Models without Wi-Fi: -40° C to 70° C (-40° F to 158° F) |
STORAGE TEMPERATURE |
-40° C to 85° C (-40° F to 185° F) |
RELATIVE HUMIDITY |
5% to 95% (non-condensing) |
ACCESSORIES |
AVAILABLE ACCESSORIES |

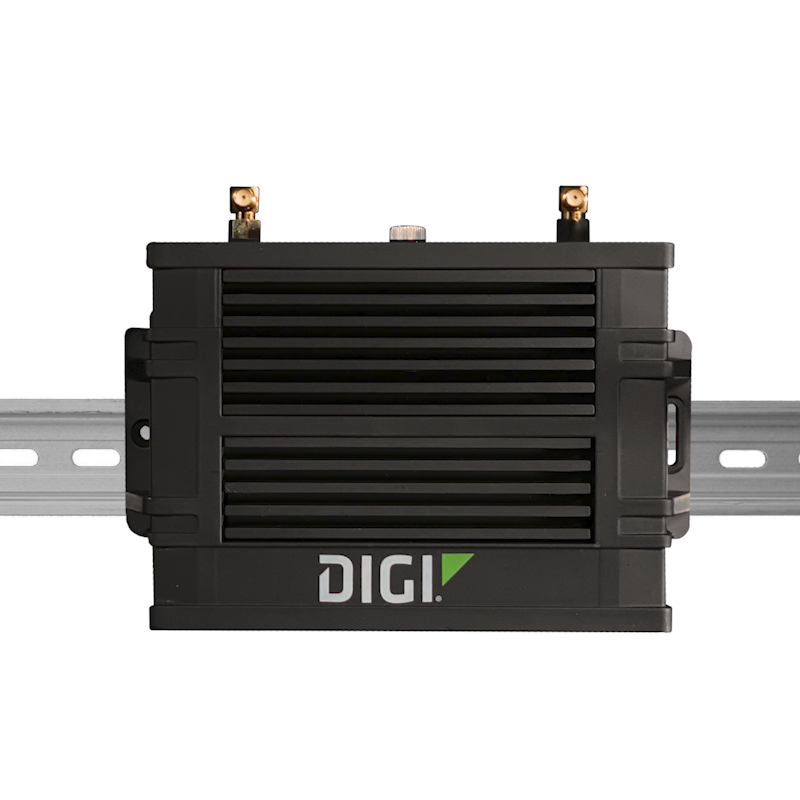

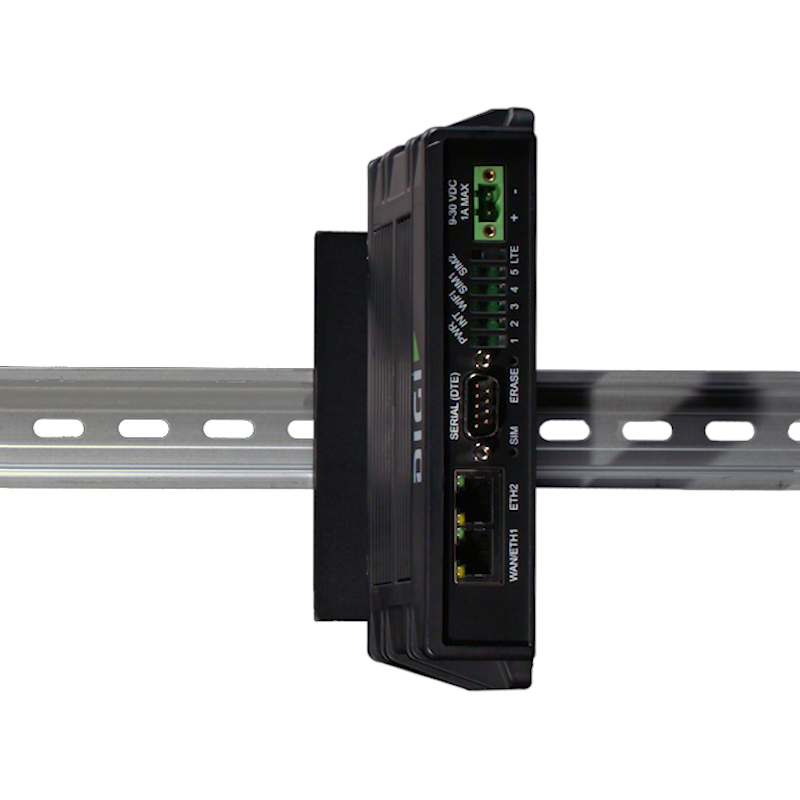

Accessories not included. Available accessories: industrial extended temperature or commercial power supply (required); Wi-Fi, cellular and GPS antennas, Ethernet cable, DIN rail clip kit and DIN rail mounting bracket kit (recommended / optional) |
APPROVALS |
|
CELLULAR |
Visit https://www.digi.com/resources/certifications for latest cellular certifications |
SAFETY |
IEC62368-1, CB, EN62311 |
ENVIRONMENTAL |
ROHS3 |
EMISSIONS / IMMUNITY |
CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32 |
WARRANTY |
|
PRODUCT WARRANTY |
3-year |
ENTERPRISE SOFTWARE |
PROTOCOL SUPPORT |
HTTPS, FTP client, TLS v1.2, SCP (client and server), SFTP, SMTP client for use by scripts and the command line, SNMP (v2/v3), SSH; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; dynamic DNS client compatible with BIND9/No-IP/DynDNS; captive portal, Intelliflow; Nagios, DNS server, NTP server, multicast, mDNS, IPerf |
SECURITY |
IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation, TLS 1.2 and above, FIPS 197, OpenVPN client and server, VPN tunnels; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support |
VPN |
IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448) |
ROUTING/FAILOVER |
IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; Routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover, Digi SureLink® |
OTHER PROTOCOLS |
DHCP; dynamic DNS client compatible with No-IP/DynDNS |
